Sale!

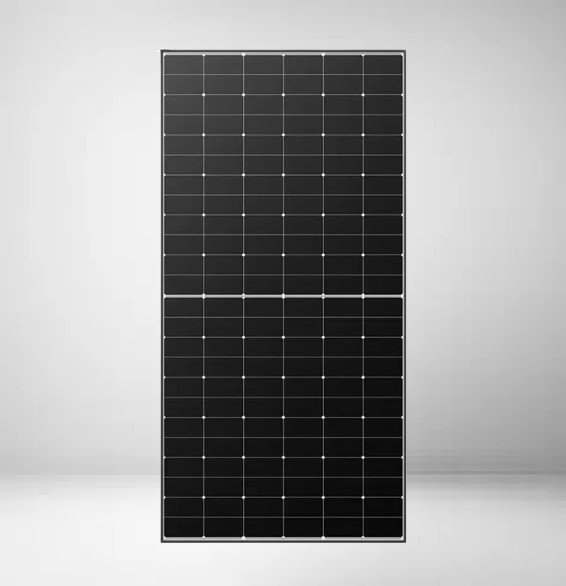

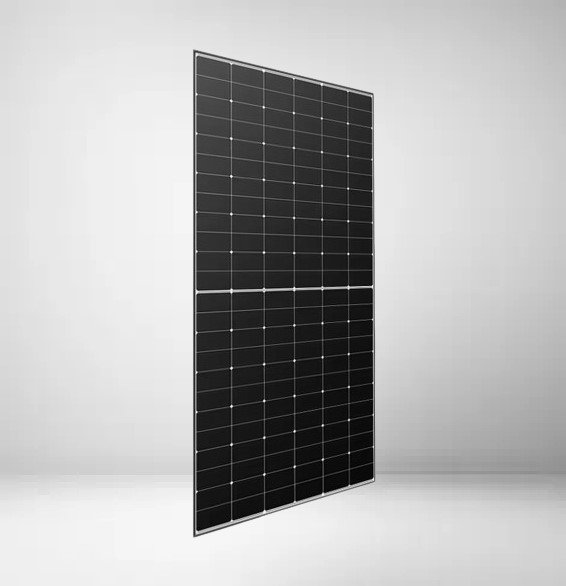

Jinko – Monocrystalline Solar 415W PV Module
R2,508.00
Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Mecer 415W Monocrystalline Solar Panel
FEATURES AND BENEFITS:
- Higher output power.
- Less shading and lower resistive loss.
- Lower LCOE.
- Better mechanical loading tolerance.
SPECIFICATIONS:
- Cell: Mono.
- Cable Cross-Section Size: 4mm².
- No. of cells: 144(6×24）.
- Junction Box: IP68, 3 diodes.
- Cable Length: (Including Connector) 1200mm (+)/1200m(-)
ELECTRICAL PARAMETERS AT STC:
- Type: JAM72S20-455/MR.
- Rated Maximum Power (Pmax): 455W.
- Open Circuit Voltage (Voc): 49.85V.
- Maximum Power Voltage (Vmp): 41.82V.
- Short Circuit Current (Isc): 11.41A.
- Maximum Power Current (Imp): 10.88A.
- Module Efficiency: 20.4%.
| Weight | 21.5 kg |
|---|---|
| Dimensions | 1722 × 1134 × 30 mm |
| Brand | Jinko |
